Cat C3.4 DIT Engine Parts

Located in the USA with delivery available to Canada, Caribbean and worldwide.

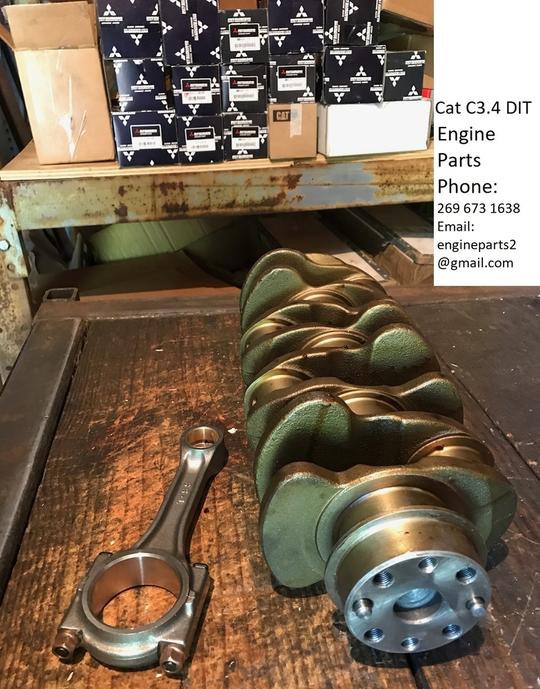

Crankshafts
Crankshaft Kits include: crankshaft, big end connecting rod bearings, main crankshaft bearings, thrust washers
Engine Overhaul Kits
Engine ReRing Kits
Connecting Rods
Engine Oil Pumps

Turbocharger Rebuild Kits
Engine Oil Coolers
Camshafts
Lifters / Tappets
Crankcase Soft Plug Sets
Cylinder Head Soft Plug Sets
Injectors
Glow Plugs

Cat C3.4 DIT Engine ReRing Kit includes: piston rings, rod bearings, main bearings, thrust washers,
upper engine gasket and seal set, lower engine gasket and seal set with front and rear crankshaft seals.

Cat C3.4 DIT Engine Overhaul Kit includes: pistons, piston rings, piston pins, piston pin retainers,
rod bearings, main bearings, thrust washers, piston pin bushings,
upper engine gasket and seal set, lower engine gasket and seal set with front and rear crankshaft seals.

Cat C3.4 DIT Piston Size Options in inches :   ( diameter at piston skirt )
Standard Piston: 3.6990 to 3.7002 Inch
.010 Inch Oversize Piston: 3.7089 to 3.7100 Inch
.020" Oversize Piston: 3.7187 to 3.7199 Inch

Cat C3.4 DIT Piston Size Options in metric millimeters :   ( diameter at piston skirt )
​Standard Piston: 93.955 to 93.985MM
.25MM Oversize Piston: 94.205 to 94.235MM
.50MM Oversize Piston: 94.455 to 94.485MM

Cat C3.4 DIT Main Bearing Size Options  in inches:
Standard Main Bearing Journal 3.0691 to 3.0697 Inch
.010" Undersize Main Bearing Journal 3.0591 to 3.0597 Inch
.020" Undersize Main Bearing Journal 3.0491 to 3.0497 Inch
.030" Undersize Main Bearing Journal 3.0391 to 3.0397 Inch
.040" Undersize Main Bearing Journal $3.0291 to 3.0297 Inch

Cat C3.4 DIT Main Bearing Size Options in metric millimeters :
Standard Main Bearing Journal 77.955 to 77.970MM
.25MM Undersize Main Bearing Journal 77.705 to 77.720MM
.50MM Undersize Main Bearing Journal 77.455 to 77.470MM
.75MM Undersize Main Bearing Journal 77.205 to 77.220MM
1.00MM Undersize Main Bearing Journal 76.955 to 76.97MM

Cat C3.4 DIT Rod Bearing Size Options  in inches:
Standard Rod Bearing Journal 2.2817 to 2.2823 Inch
.010" Undersize Rod Bearing Journal 2.2719 to 2.2724 Inch
.020" Undersize Rod Bearing Journal 2.2620 to 2.2626 Inch
.030" Undersize Rod Bearing Journal 2.2522 to 2.2528 Inch
.040" Undersize Rod Bearing Journal  2.2422 to 2.2428 Inch

Cat C3.4 DIT Rod Bearing Size Options in metric millimeters :
Standard Rod Bearing Journal 57.955 to 57.970MM
.25MM Undersize Rod Bearing Journal 57.705 to 57.720MM
.50MM Undersize Rod Bearing Journal 57.455 to 57.470MM
.75MM Undersize Rod Bearing Journal 57.205 to 57.220MM
1.00MM Undersize Rod Bearing Journal 56.955 to 56.970MM

We have small stock of new engine parts from old workshop inventory.


Note: These newer Cat C3.4 DIT Series 2 engines and Cat C3.4 DIT Series 3 engines can have different pistons, compression ratios, different crankshafts, and different internal parts than the older 3044 and C3.4 engine. Please provide your serial number to determine the correct parts for your engine.
